GFT-T Travel Drive Series Hydraulic Final Drive with Planetary Gearbox
1. Integrated Planetary Gearbox & Wet Multi-Disc Brake Design
GFT-T travel drive series combines a high-performance planetary gearbox with a reliable wet multi-disc brake system, providing efficient torque transmission, stable braking performance and safe operation for mobile equipment.
2. High Load Capacity & Compact Modular Structure
Featuring advanced design and modern manufacturing processes, the hydraulic travel drive offers excellent load-carrying capacity, high total efficiency and a compact modular design for easy installation and maintenance.
3. Flexible Hydraulic Motor Compatibility & Wide Applications
The GFT-T hydraulic final drive can be equipped with various hydraulic motors according to customer requirements and is suitable for crawler vehicles, track systems, coal road headers, milling machines and other mobile machinery.
| Model | Output Torque Tmax Nm | Ratio | Hydraulic motor | Max.input Speed r/min | Braking Torque max. Nm | Brake Press. Mpa | Weight kg | |

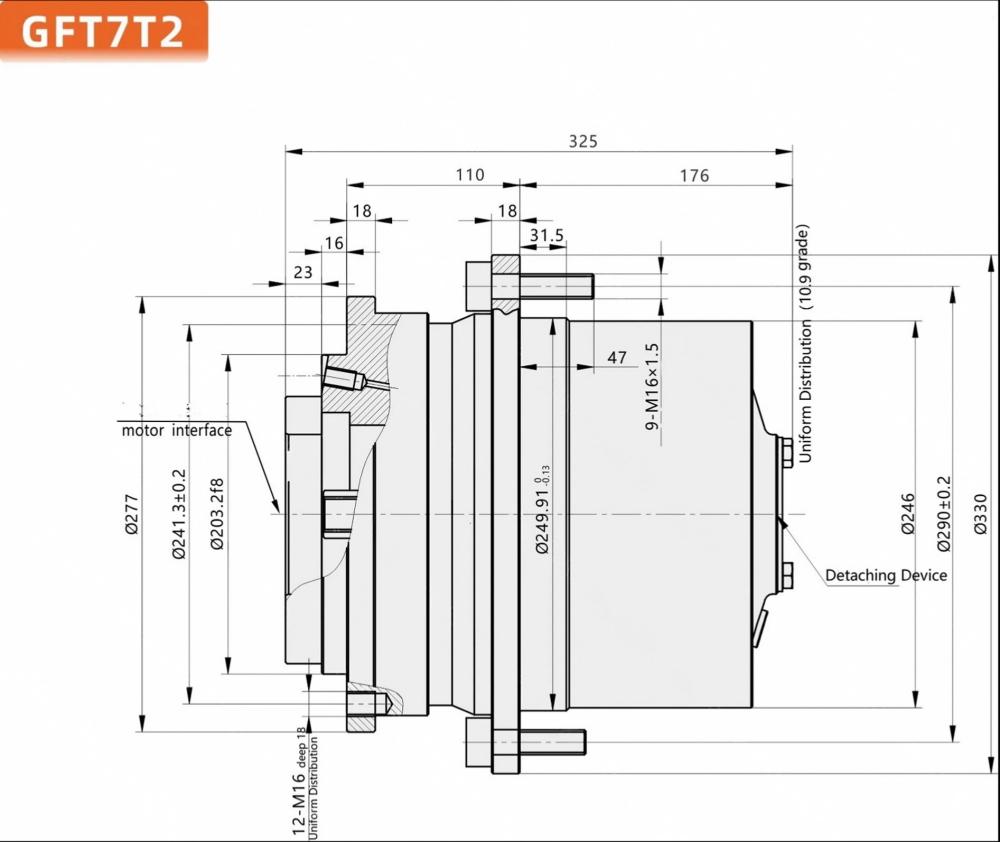

| GFT7T2 | 8000 | 28 32 38 48 | A2FE45 A2FE32 | GOK55 GOM55 51D060 | 3500 | 250 | 1.8-5 | 68 |
