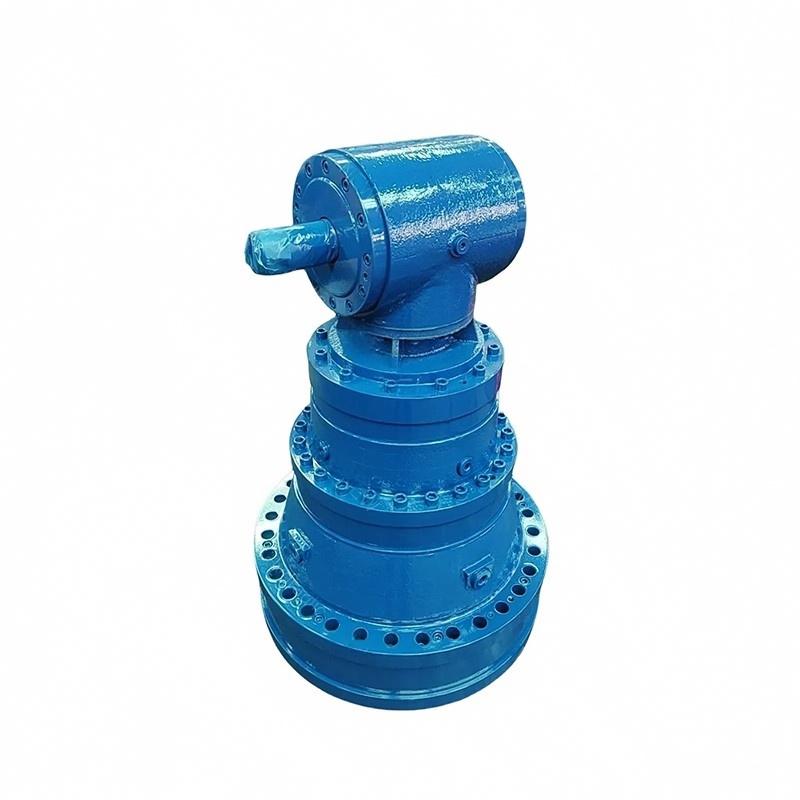

GFB Series GFB870 & GB31000-GB37000 Planetary Gearbox Hydraulic Reduction Gearbox
1. High Torque Hydraulic Planetary Gearbox
GFB610 planetary gearbox delivers high torque output and efficient power transmission, providing a reliable hydraulic gear reducer solution for mobile machinery, construction equipment and industrial applications.
2. Compact Design & High Load Capacity
Featuring a compact planetary reduction structure, the GFB610 gearbox offers excellent torque density, smooth operation and strong load-bearing capability in demanding working environments.
3. Reliable Hydraulic Transmission Performance
Designed for hydraulic motor drive systems, the GFB610 planetary gearbox provides stable speed reduction, high mechanical efficiency and long service life for travel drives, winch systems and rotating equipment.

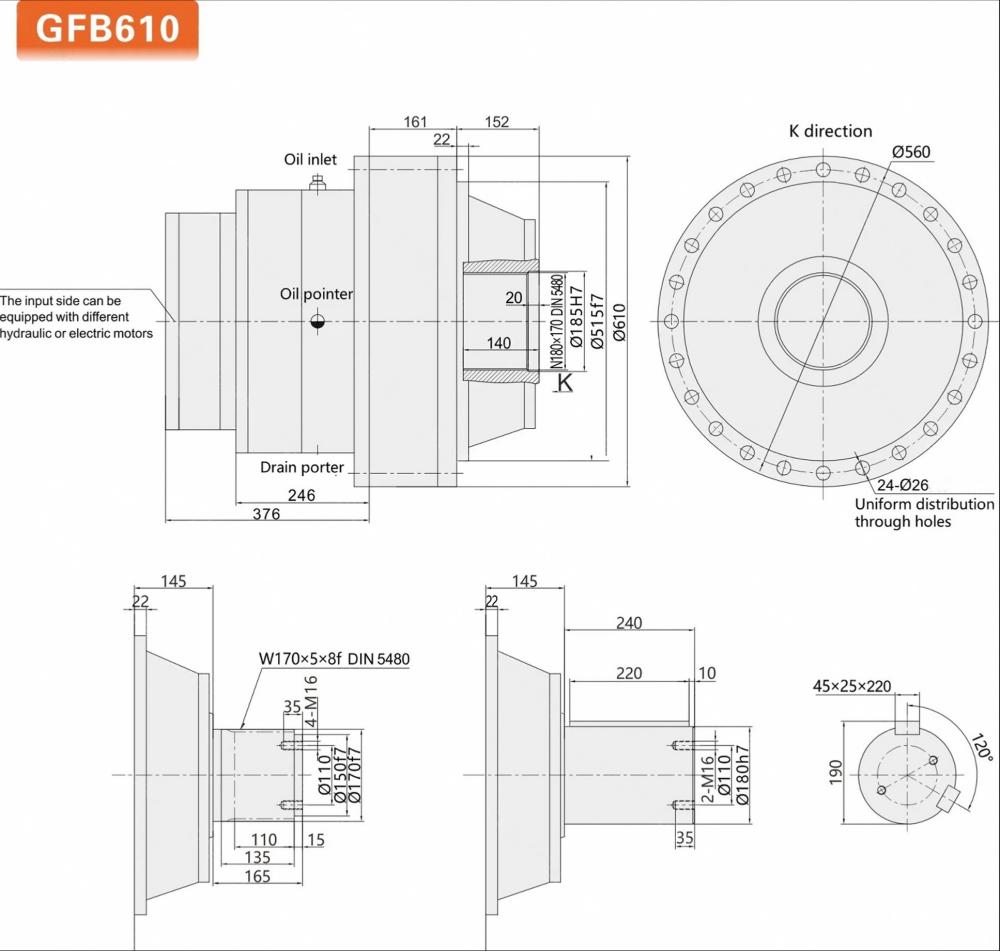

| Model | Output Torque(N.m) | Ratio | Hydraulic Motor | Max input speed(r/min) | |||||
| Rated | Max | One Grade | Two Grade | Three Grade | |||||
| GFB610 | 85000 | 127500 | 4.1 5.2 6.3 | 16.3 21.2 24.9 27.3 32.8 38.9 | 67.9 88.3 113.4 136.3 158.9 187.2 | DANFOSS EATON M+S | REXROTH LINDE SAM SAUER | SAI DINAMIC OIL CALZONI | 3500 |
