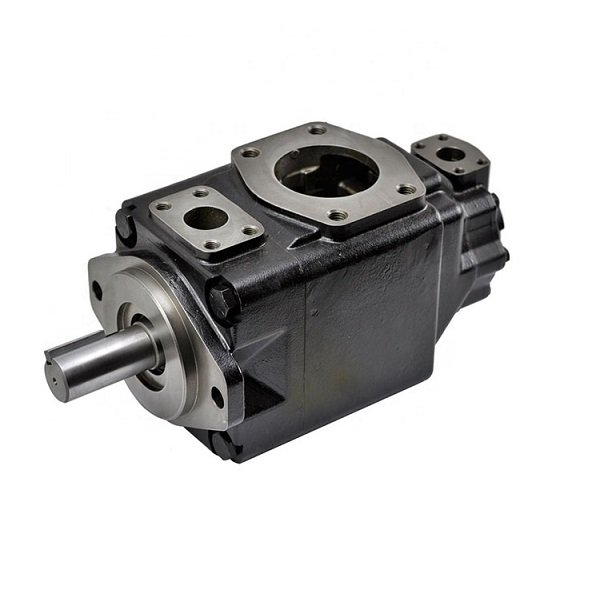

T6DC Dension Double Vane Hydraulic Pump

Hymon Hydraulics provides high quality T6DC Dension Double Vane Hydraulic Pump. Moreover, we can make varies of hydraulic pump parts with factory-direct prices and have state of the art machining testing facilities to assist clients with their projects.

With dowel pin vane structure, it can work in high pressure,low noise and long lifetime.
This vane pump can fit wide viscosity hydraulic medium,and be started at low temperatre and work at high temperature.
As the vane pump adopts bilabial structure vane,it has high oil polution resistance and wide speed scope.

Item:	T6DC Dension Double Vane Hydraulic Pump
Brand:	Hymon Hydraulics
Model Number	T6DC
Series	T6DC014 . T6DC017 . T6DC020 . T6DC024 . T6DC028 . T6DC031 . T6DC035 . T6DC038 . T6DC042 . T6DC045 . T6DC050 . T6DC061.
Features:	High pressure and high performance dowel pin type vane pumps Widely used for plastic machinery,casting machinery,metallurgy machinery, pressing machinery,refining machinery,construction machinery,marine-Machinery

Technical Data

T6CC	-25	-17	-1	R	02	-C	1	10
Series	Flow-shaft end pump	Flow-cover end pump	Shaft type	Rotation	Port Positions	Design Number	Sealing Level	Port
T6CC	003/B03. 005/B05. 006/B06. 008/B08. 010/B10. 012/B12. 014/B14. 017/B17. 020/B20. 022/B22. 025/B25. 028/B28. 031/B31	003/B03. 005/B05. 006/B06. 008/B08. 010/B10. 012/B12. 014/B14. 017/B17. 020/B20. 022/B22. 025/B25. 028/B28. 031/B31	See size of shaft	(Viewes from shaft end of pump) R L	See below	C	1-S1 Nitrile rubber5-S5 Fluoro rubber	00, 01, 10, 11
T6DC	014/B14. 017/B17. 020/B20. 024/B24. 028/B28. 031/B31. 035/B35. 038/B38. 042/B42. 045/B45. 050/B50. 061.	003/B03. 005/B05. 006/B06. 008/B08. 010/B10. 012/B12. 014/B14. 017/B17. 020/B20. 022/B22. 025/B25. 028/B28. 031/B31						/
T6EC	042. 045. 050, 052. 057. 062. 066. 072. 085	003/B03. 005/B05. 006/B06. 008/B08. 010/B10. 012/B12. 014/B14. 017/B17. 020/B20. 022/B22. 025/B25. 028/B28. 031/B31
T6ED	042. 045. 050. 052. 057, 062. 066. 072, 085	014/B14. 017/B17. 020/B20. 024/B24. 028/B28. 031/B31. 035/B35. 038/B38. 042/B42. 045/B45. 050/B50. 061.
T7BB T7BBS	B02. B03. B04. B05. B06. B07. B08. B10. B12. B15	B02. B03. B04. B05. B06. B07. B08. B10. B12. B15						00. 01
T67CB	003/B03. 005/B05. 006/B06. 008/B08. 010/B10. 012/B12. 014/B14. 017/B17. 020/B20. 022/B22. 025/B25. 028/B28. 031/B31	B02. B03. B04. B05. B06. B07. B08. B10. B12. B15						/
T67DB	014/B14. 017/B17. 020/B20. 024/B24. 028/B28. 031/B31. 035/B35. 038/B38. 042/B42. 045/B45. 050/B50. 061.	B02. B03. B04. B05. B06. B07. B08. B10. B12. B15
T67EB	042. 045. 050. 052. 057, 062. 066. 072, 085	B02. B03. B04. B05. B06. B07. B08. B10. B12. B15
