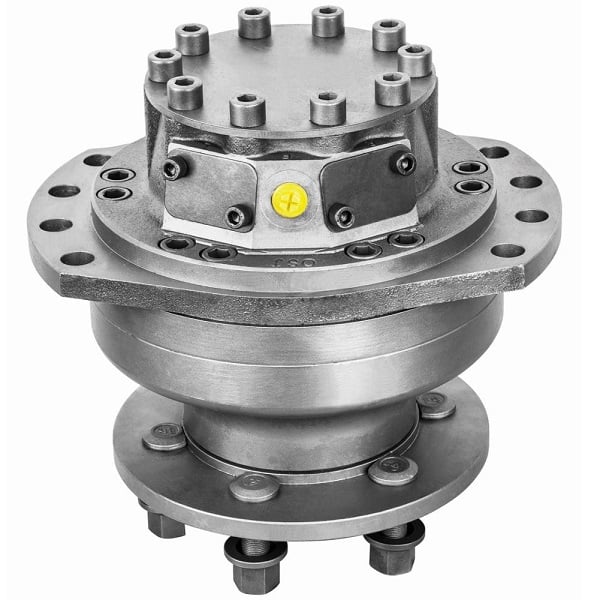

Poclain MS11 Low Speed Large Torque Radial Piston Motor
Hymon Hydraulics provide MS11 Low Speed Large Torque Radial Piston Motor 100% interchangeable with Poclain. Moreover, We can make varies of hydraulic pump parts piston pump parts with factory direct prices and have state of the art machining testing facilities to assist clients with their projects.
- Size: MS02, MS05, MS08, MS11, MS18, MS25, MS35, MS50, MS83, MS125, MS250
| Item: | Poclain MS11 Low Speed Large Torque Radial Piston Motor |
| Brand: | Hymon Hydraulics |
| Model Number | MS11 |
| Size | MS02, MS05, MS08, MS11, MS18, MS25, MS35, MS50, MS83, MS125, MS250 |
| Features: | Beam Carrier/Hoisting Machine, Cement Concrete Mixing Station, Cinder,Belt Conveyor, Spray Machine, Mini Road Header, Scraper,Heavy Duty Handling Car,Coal Mine Drill, Marine Deck Crane |
Technical Data
| Code | MS11 | MSE11 | ||||||||
| Displacement Group | 7 | 8 | 9 | 0 | 1 | 2 | 9 | 0 | 1 | 2 |
| Displacement (ml/r) | 730 | 837 | 943 | 1048 | 1147 | 1259 | 1263 | 1404 | 1536 | 1687 |
| Theoretical Torque at 10Mpa(N.m) | 1161 | 1331 | 1499 | 1666 | 1842 | 2002 | 2008 | 2232 | 2442 | 2682 |
| Rated Speed (r/min) | 125 | 125 | 125 | 100 | 100 | 80 | 80 | 80 | 63 | 63 |
| Rated Pressure (Mpa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Rated Torque (N.m) | 2400 | 2750 | 3100 | 3400 | 3750 | 4100 | 4150 | 4600 | 5050 | 5500 |
| Max. Pressure (Mpa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Max. Torque (N.m) | 2950 | 3350 | 3800 | 4200 | 4650 | 5100 | 5100 | 5650 | 6200 | 6800 |
| Speed Range (r/min) | 0-200 | 0-195 | 0-190 | 0-185 | 0-180 | 0-170 | 0-170 | 0-155 | 0-140 | 0-130 |
| Max. Power (kw) | Standard displacement is 50 kW,variable displacement priority rotation 33 kW,no priority is 25 kW. | |||||||||
