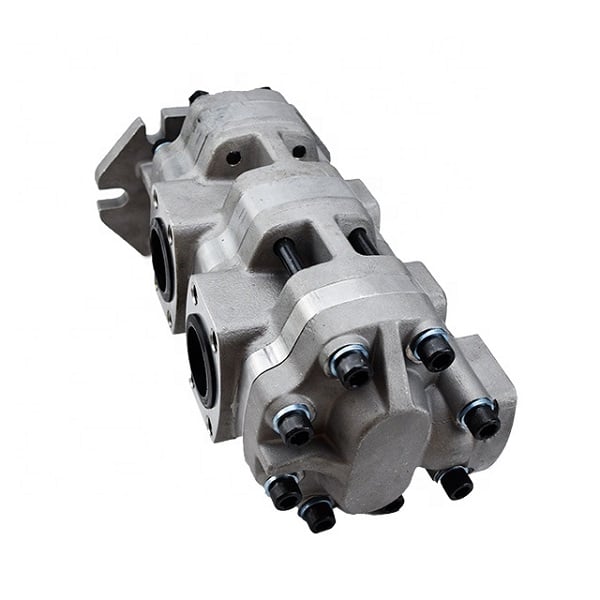

GPC4-40 High-Pressure Gear Pump Hydraulic Oil Pump Vickers
Hymon Hydraulics provide GPC4-40 High-Pressure Gear Pump Hydraulic Oil Pump Vickers. We can make varies of hydraulic pumps motor parts with factory direct prices and have state of the art machining testing facilities to assist clients with their projects.
- High-strength aluminum alloy extrusion shell, bearing, capacity, and high DU structure.
- Higher pressure, high speed, simple structure, easy maintenance.
- Working pressure up to 25MPA, working speed 3300r/min.
- Twin and multiple gear pumps are available
- Same as the Vickers gear pump.
- Small and lightweight.
- Short leading time.
| Item: | GPC4-40 High-Pressure Gear Pump Hydraulic Oil Pump Vickers |
| Brand: | Hymon Hydraulics |
| Model Number | GPC4 |
| Series | GPC4-20 GPC4-25 GPC4-32 GPC4-40 GPC4-50 GPC4-63 GPC4-80 |
| Application: | Mainly used in cranes, dump trucks and other construction machinery. |
Technical Data
| Model | Nominal Displacement
(ML/R) | Rated Pressure (MPA) | Nominal Speed
(R/MIN) | Min Speed
(R/MIN) | INput Power
(AT rated pressure & speed) | Weight
(KG) |
| GPC4-20 | 21.0 | 25 | 3300 | 900 | 36.55 | 8.3 |
| GPC4-25 | 26.2 | 25 | 3300 | 900 | 45.6 | 8.6 |
| GPC4-32 | 32.8 | 25 | 3150 | 900 | 53.15 | 9.0 |
| GPC4-40 | 42.0 | 25 | 3000 | 900 | 64.81 | 9.4 |
| GPC4-50 | 52.5 | 23 | 2700 | 800 | 67.08 | 9.7 |
| GPC4-63 | 65.6 | 20 | 2500 | 700 | 67.49 | 10.2 |
| GPC4-80 | 78.7 | 18 | 2300 | 600 | 67.04 | 10.7 |
